New Product Alert from JFW – Phase Shifter Assembly with Ethernet Control

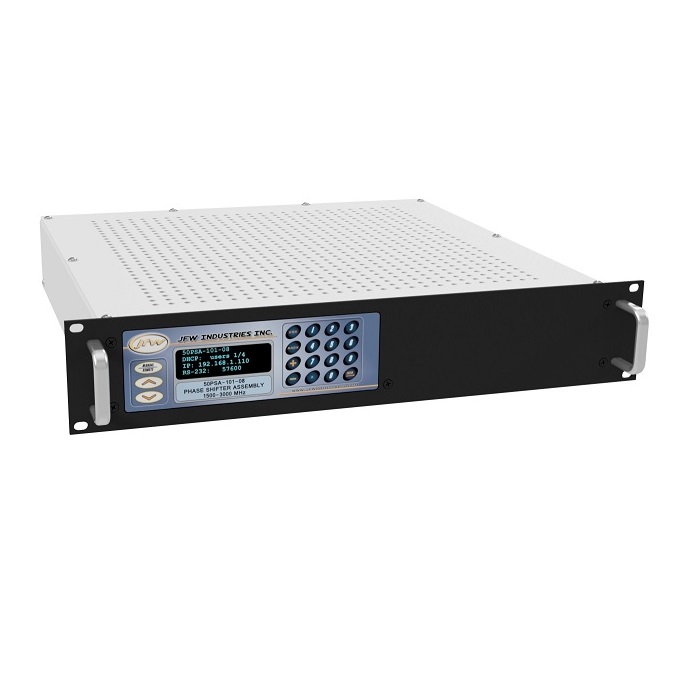

JFW model 50PSA-101-XX is a programmable phase shifter assembly with range 0 – 358.6° by 1.4° steps. The center frequency is user selectable from 1.5-3.0 GHz. More information can be found here.

Each phase shifter can be assigned a different center frequency

  • Available with 1 to 8 individually controlled phase shifters
  • SMA or N female RF connectors
  • Ethernet, Serial, and Manual controls
  • Uses DHCP for easy network setup
  • 19 inch rack mountable chassis

Typical Phase Accuracy from designated center frequency:

  • < 2° typical with 40 MHz bandwidth
  • < 4° typical with 80 MHz bandwidth
  • < 10° typical with 200 MHz bandwidth
